Sizes of gable roof hall

Sizes of the gable roof hall

Width Long side height / eave height average height / ridge height
8,00m The grid spacing/support spacing is 2.50m each. The length of a hall can be freely selected around this distance. e.g. 5.00m - 7.50m - 10.00m - 12.50m etc. 2,70m 3,60m
8,00m " 4,20m 5,10m
10,00m " 2,70m 3,80m
10,00m " 4,20m 5,20m
12,00m " 4,20m 5,40m
12,00m " 5,00m 6,20m
15,00m " 4,20m 5.70m
15,00m " 5,00m 6,50m

new text

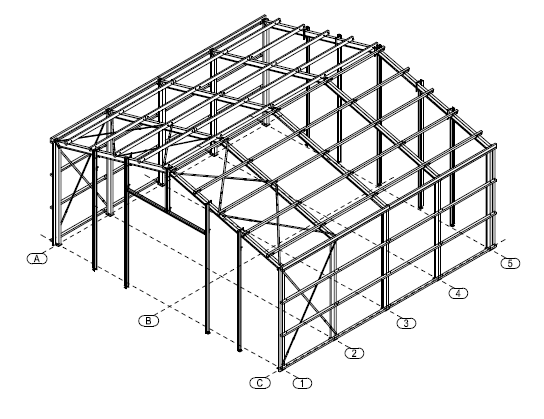

Konstruktion einer Satteldachhalle
